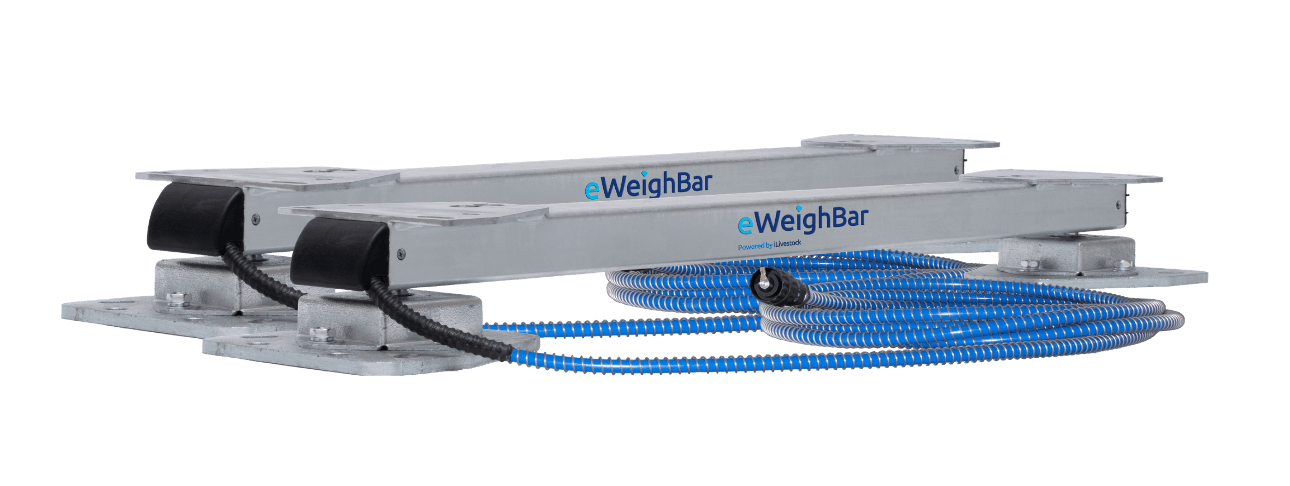

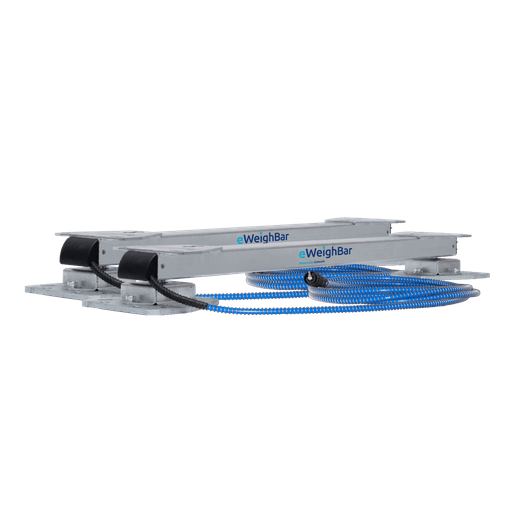

iLivestock eWeighBarHD Heavy Duty Load Bars (1000mm)

FETF Grant Codes: FETF79CA & FETF79SH

eWeighBarHD is a heavy-duty digital weighing load bar built for livestock up to 5,000 kg | 11,000 lbs. Designed to sit safely under a cattle crush, it handles the largest animals while transmitting accurate weights through your existing weigh head to iLivestock. Recording weights instantly in the app, it removes manual note-taking and reduces errors.

Rugged and farm-ready, the eWeighBarHD gives farmers reliable performance data for breeding, feeding, finishing, and sales decisions, providing a robust solution for heavy livestock weighing.

Key Features:

• Exceptional Weight Capacity: Supports up to 5,000kg (11,000lbs), perfect for high-load applications.
• Heavy-Duty Aluminium Construction: Durable yet lightweight, designed for long-term use in challenging environments.
• Precision Accuracy:0.5kg (1.0lb) resolution ensures accurate weight readings.
• Weatherproof & Corrosion-Resistant: Galvanised finish (IP66 rated) provides superior protection against rust and wear.
• Wide Operating Temperature Range: Reliable performance from -10°C to +40°C.
• Easy Installation: Supplied with eight M10 and four M10 bolts for secure mounting to platforms or crates.

Compact & Sturdy Design:

• Length: 1100mm
• Depth: 210mm
• Height: 110mm
• Platform Fixing Points: Adjustable range between 870mm - 965mm
• Weight: 20kg (per bar)

Specification:

• Capacity: 5,000KG/11,000Lbs
• Coating: IP66
• Cable: Heavy Duty TPR/PVC
• Operating Temp: -20°C to 40°C
• Performance:
  • Resolution 0.2KG/0.5Lbs
  • Accuracy ±1% F.S. or 2d
• Warranty: 2 years

Why Choose eWeighBar 1000 HD?

• Built for Heavy-Duty Applications: Ideal for large livestock, industrial weighing, and high-capacity farming needs.
• Durable & Corrosion-Resistant: Galvanised IP66 coating protects against environmental wear and tear.
• High-Precision Weighing: Delivers accurate and consistent measurements to optimise farm management.
• Versatile Fixing Points: Adjustable mounting range for maximum flexibility.

Compatible weigh heads:

• iLivestock eWeigh
• Tru-Test XR5000
• Tru-Test S3
• Tru-Test EzWeigh 7i
• Gallagher W-0

Code: EWEIGHBARHD
